USN Yorktown CV-10. At last, a 1/350 WWII aircraft carrier, thanks Trumpeter!

by Giulio Marrucci © 2007 Modeler Site

Legal Notice

No material from Modeler Site any Web site owned, operated, licensed, or controlled by Damian Covalski may be copied, reproduced, republished, uploaded, posted, transmitted, or distributed in any way, except that you may download one copy of the materials on any single computer for your personal, non-commercial home use only, provided you keep intact all copyright and other proprietary notices. Modification of the materials or use of the materials for any other purpose is a violation of Damian Covalski's copyright and other proprietary rights.

Read More here > Legal notice



Aviso legal

Ningún material de MS puede ser copiado, reproducido total o parcialmente, republicado, descargado de la red, trasmitido, anunciado, o distribuido de forma alguna, por ningún medio existente y o por inventar. A sola excepción de que usted descargue de la red una copia de los materiales en una sola computadora para su uso personal familiar, no-comercial, a condición de que usted mantenga intactos los derechos de propiedad literaria y otros avisos de propiedad. La modificación de los materiales o uso de los materiales para cualquier otro propósito es una violación de los derechos de autor y otros derechos de propiedad de Damian Covalski . Para los fines de estos términos, el uso de cualquier material perteneciente a MS en cualquier otro sitio WEB o computadora conectada a una red distinta de Internet esta terminantemente prohibida.

Lea más aquí > Aviso legal


Basically is a good kit, but if you want “make the difference” you need the photo etched parts dedicated to the Essex Class, produced by the Golden Medallion, providing reels, stairs, radar antennas, all the aerial and a lot of many other details like undercarriage doors covers, landing gear struts etc.



The box offers two ways for displaying the model: waterline and full hull. Even if I decided for an “action diorama” I used the second option, in order to “immerge” my ship in a water made of styrene foam modelled with a soldering device and painted with acrylic varnishes of various shades ranging from deep blue to emerald green.

Over the entire surface I applied a generous coat of clear gel. Top of waves can be dry brushed in white.

Before painting the water, I set into position the York (without upper bridge) fully painted and weathered ( I used Gunze as per instructions and Tamiya pastels). It will be necessary use some water based putty to fill the gap all around the hull.




I wonder why but all the side doors are closed. I decided to open some of them to allow the lower bridge to be seen from outside. The lower bridge won’t be so visible at the end of your work, so I decided not to waste much time in super detailing the entire surface but only the area around the elevators. Do not forget to place in position some aircraft before close the top!





At this point I started to work the island. It’s a very killing time job if you decide to use the photo etched parts offered by Golden Medallion but is worth to! Some difficult may arise for the masking process according the “measure” used in’43.



I strongly suggest to gather as much information and pictures as possible because all the Essex class where different from each other and underwent to many improvements and changes during their operational life, mainly for the position of various antennas, a/a guns etc.

One of the weakest points of the model is the main bridge offered in three separated parts. It’s a very challenging job glue them together avoiding the joint to be visible, even because the surface detail could be easily rubbed off with putting and sanding. I solved the problem re engraving the surface after sanding. Furthermore I reinforced the flight deck with plastic rod below.

Painted in blue (the information about colors given by Trumpeter are correct), has been weathered with a wash of reddish brown and dry brushed with gray, dark brown and black. The latest to simulate the rubber streaks produced by tires when landing.

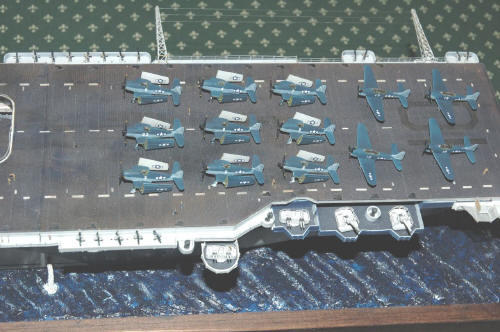

At last, the aircraft. Well detailed, considering the scale, the only evident missing parts are the landing gear doors. Some can be scratch built with a very thin plastic sheet due to the insufficient number present in the photoetched fret. (I really wonder why?!)
